One-Stop Pcba Manufacxturer Double-Sided Copperclad Laminate Rigid Flexible Pcb Assembly Service
Recent years have been witnessing improvement in electronic information technology and increasingly higher demands from people on their applications of electronic products. Complex structure and multiple functions of electronic products lead printed circuit boards (PCBs) to move towards new directions. On one hand, increasingly more integrated components in electronic products and miniaturization of overall size make circuit boards be of high density, high accuracy and high integration, which arousing a transition from simply multilayer PCBs to HDI PCBs. On the other hand, electronic products call for high-speed, low loss, low delay and high-fidelity (HiFi) signal transmissions and have to be compatible with high-consumption environment for high powers, requiring PCBs to be involved with a high-frequency and high-dissipation thermal design and high-quality signals transmission.
| Article | Description | Capability |
| Material | Laminate materials | FR4, High TG FR4, High Frequency, Alum, FPC... |
| Board Cutting | Number of layers | 1-48 |
Min.thickness for inner layers
(Cu thickness are excluded) | 0.003”(0.07mm) |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” |
| 4layer:0.01±0.008” |
| 8layer:0.01±0.008” |
| Bow and twist | no more than 7/1000 |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) |
| PTH hole tolerance | ±0.002″(0.005mm) |
| NPTH hole tolerance | ±0.002″(0.005mm) |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) |
| Thickness | (0.012*0.017mm) |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) |
| Max Size of Finish Board | 700*460mm |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… |
| PCB Outline | Square,circle,irregular(with jigs) |
| Package | QFN,BGA,SSOP,PLCC,LGA |
Delivery Time for PCB
| Layer | Prototype | Mass Productions (above 30 m2 ) |
| Quick Turn | Unual Time |
| 2 | 24 hours | 3-4 days | 8-10 days |
| 4 | 48 hours | 5-6 days | 10-12 days |
| 6 | 72 hours | 6-8 days | 12-14 days |
| 8 | 96 hours | 8-10 days | 14-16 days |
| 10 | 120 hours | 12-14 days | 16-18 days |
| ... | ... | ... | ... |
Delivery Time for PCBA
| Order Conditions | Standard Delivery Date | The fastest Delivery Date |
| Prototype (<20 pcs) | 2 days | 8 hours |
| Small Volum (20-100 pcs) | 3 days | 12 hours |
| Medium Volum(100-1000 pcs) | 6 days | 24 hours |
| Mass productions (>1000 pcs) | Depends on BOM | Depends on BOM |
As the experienced quick turn pcb prototype factory china, FASTPCBA provide one-stop pcba assembly service for customers of military pcba, communication pcba, automotive pcba, medical pcba, aerospace pcba, Iot pcba, smart home pcba, industrial pcba etc over 20 years.
With independent pcb factory in jiangmen guangdong province and pcb assembly factory in shenzhen china, FASTPCBA can provide the most competitive pcb price for middle and high-end customers. The whole pcb fabrication and assembly process is strictly comply with ISO & IATF certificates, safety,reliable and high yeild pcba obtained.
FASTPCBA is the sole pcba assembly processing factory, who is highly praised by 2000 customers over 50 countries. The road to high quality is hard and long, FASTPCBA will try our best to better serve for customers.
Product Tags:
|
|

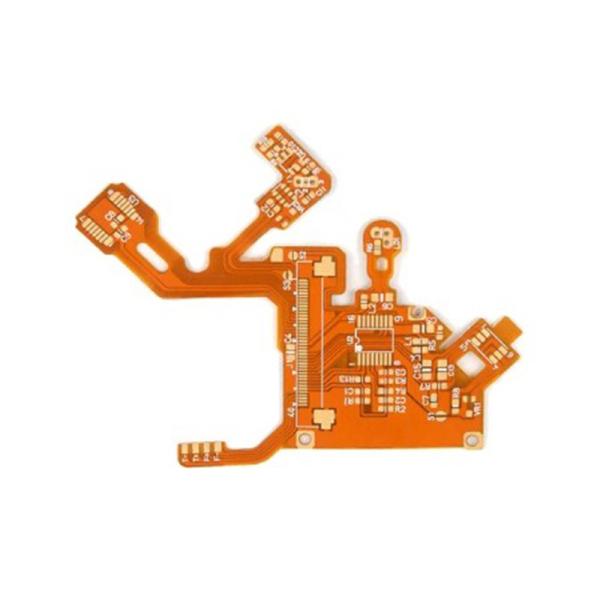

Electronic 2 Sided Rigid Flexible Printed Circuit Manufacturers Images
|
